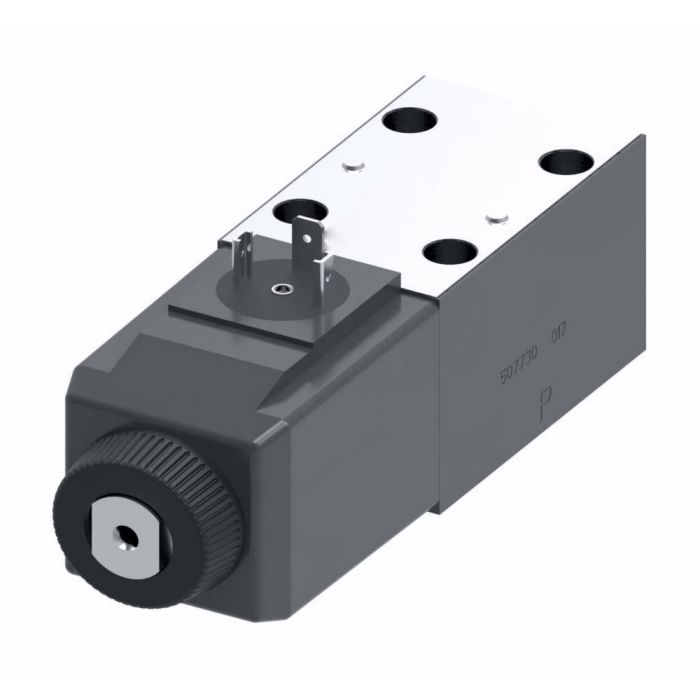

VICKERS DG4V32AMUD7DS760 02-362107

Specifications

Application Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)	Brand Danfoss (Power Solutions II LLC)	Brand Vickers	Pack Size 1.00	UOM EA	Features Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications	Flow Rate1 80 litre per minute	ICC IV Directional Control Valves	Language English	Net Pack Quantity Units EA	Product Width 1.80	Seal Material Buna-N	Special Features None	Sub Brand Vickers	Supplier Part Number 02-362107	Wattage 30	Product Weight 3.50 lbs

Product Questions & Answers 2

Product Questions & Answers

got a DG4V-3 valve on a press that needs swapped, is this one a single stage directional control valve?

Question by: Ralph M on May 3, 2025, 7:17 AM

Function-wise, it’s a single stage directional control valve in the Vickers DG4V-3 60 design family, meant for three-way or four-way directional control.

Answer by: Customer Support on May 5, 2025, 6:27 AM

flow rate on this valve is listed at 80 lpm -- is that enough for press applications or is it on the lower end for that kind of work?

Question by: Hank H on Feb 1, 2026, 7:42 PM

For press applications, 80 liters per minute puts this valve well within range for a good number of setups. Press systems vary quite a bit depending on cylinder bore, stroke speed, and system demand, but 80 lpm is a solid flow capacity for single-stage directional control in that environment. The DG4V-3 series is explicitly rated for press use, so the valve itself is suited to that duty. Whether your specific circuit needs more than that comes down to your actuator sizing and cycle requirements, but this is not a low-capacity valve for its class.

Answer by: Customer Support on Feb 3, 2026, 6:06 AM
