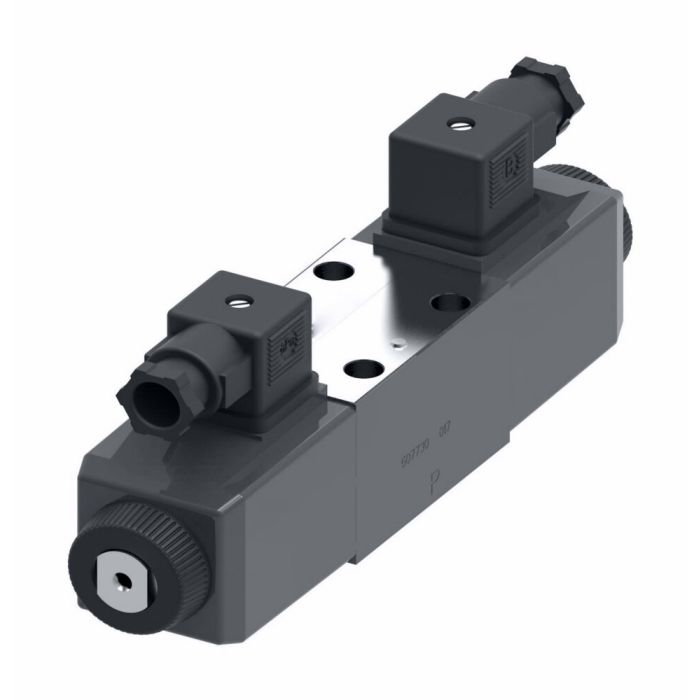

VICKERS DG4V36CMU1H760EN38 02-332745

Specifications

Alternate Part Numbers Alternate Part Number DG4V36CMU1H760EN38	Application Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)	Brand Danfoss (Power Solutions II LLC)	Brand Vickers	Pack Size 1.00	UOM EA	Features Three- or four-way directional control\|Easily mountable on industry-standard surfaces\|Thousands of models to suit all applications	Flow Rate1 80 litre per minute	ICC IV Directional Control Valves	Language English	Product Width 1.88	Seal Material Buna-N	Special Features LOW LEAKAGE / HIGH HEAD LOSS VERSION. TYPICAL LEAKAGE 5ml/MIN/LAND AT 100bar HEADLOSS x 2 STANDARD VALVE. SPECIAL SPOOLS HAVE INCREASED OVERLAP. INSTALLATION DRG NO 508190. ASSY DRG NO 698501. TP 698502	Sub Brand Vickers	Supplier Part Number 02-332745	Wattage 30	Product Weight 3.50 lbs

Product Questions & Answers 2

Product Questions & Answers

Running this on a press line where leakage has been a real headache. How bad is the internal leakage on this valve compared to a standard unit?

Question by: Wayne G on Mar 12, 2026, 2:30 PM

Leakage on this one is held to around 5 ml per minute per land at 100 bar. That's the low leakage version, which is what the special spool overlap is there for. Trade-off is that head loss runs about twice what you'd see on a standard valve, so pressure drop across it will be higher. If tight leakage control is the priority on your press, that's the version you want, just go in knowing the head loss difference is real and worth accounting for in your circuit design.

Answer by: Customer Support on Mar 14, 2026, 6:32 AM

Wondering if this valve is gonna drop right in where my old one was? Same bolt pattern and all?

Question by: Neal R on Jul 12, 2025, 11:01 AM

This Vickers valve mounts on industry-standard surfaces, so it should be a direct replacement if your current valve also uses a standard mounting pattern.

Answer by: Customer Support on Jul 14, 2025, 6:18 AM
