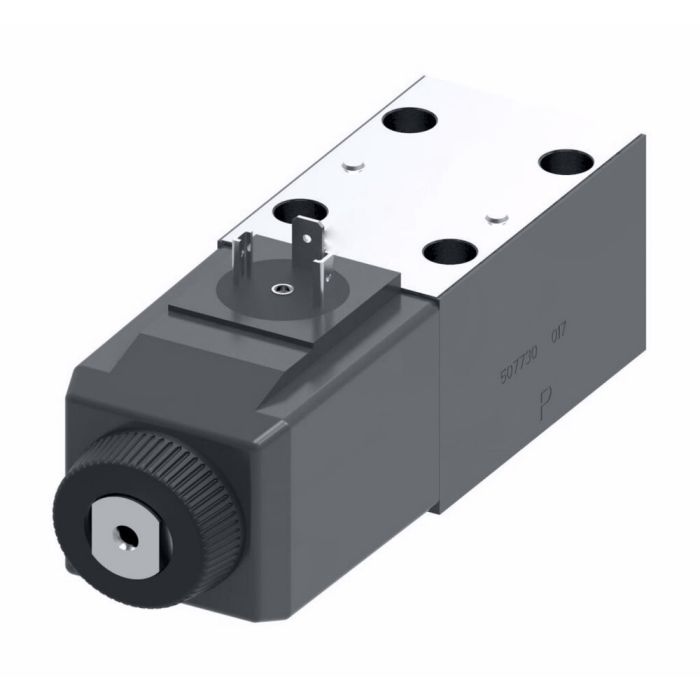

VICKERS DG4V323AMUH760EN38

Application Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water)	Brand Danfoss (Power Solutions II LLC)	Brand Vickers	Pack Size 1.00	UOM EA	Flow Rate1 80 litre per minute	ICC IV Directional Control Valves	Language English	Product Width 1.88	Seal Material Buna-N	Special Features LOW LEAKAGE / HIGH HEAD LOSS VERSION. TYPICAL LEAKAGE 5ml/MIN/LAND AT 100bar HEADLOSS x 2 STANDARD VALVE. SPECIAL SPOOLS HAVE INCREASED OVERLAP. INSTALLATION DRG NO 508190. ASSY DRG NO 698501. TP 698502	Supplier Part Number 02-319492	Wattage 30	Product Weight 3.50 lbs

Product Questions & Answers 1

Product Questions & Answers

what's the actual leakage rate on this valve? running a press application where even small amounts of leakage cause us real headaches

Question by: Rex T on Feb 20, 2026, 8:25 AM

At 100 bar, typical leakage comes out to 5 ml per minute per land. That figure is achieved through specially designed spools with increased overlap, which is what sets this apart from a standard directional control valve. The tradeoff is that head loss runs about twice what you'd see on a conventional valve, so that's worth accounting for when you're sizing your system. For a press application where leakage control is the priority, that's exactly the kind of performance this valve was built around.

Answer by: Customer Support on Feb 21, 2026, 2:40 PM
