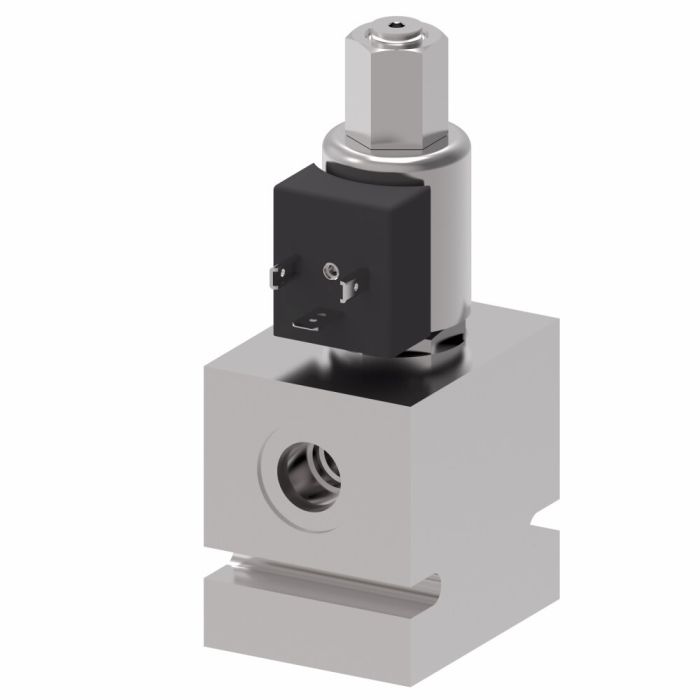

VICKERS ERV1-10-10.00-6T-24BN

Application Harvesters, refuse haulers, mobile and industrial applications	Brand Danfoss – Hydraulics	Brand Vickers	Pack Size 1.00	UOM EA	Features Rated flows up to 160 L/min (42 USgpm)\|Reliable, economical and compact\|Maximum flexibility and minimum space	Flow Rate1 60 litre per minute	ICC SICV Proportional Valves	Language English	Port Size 3/8"	Product Width 2	Special Features None	Style Spool	Sub Brand Vickers	Supplier Part Number 02-182421	Voltage 24 volt	Product Weight 1.33 lbs

Product Questions & Answers 1

Product Questions & Answers

Flow rate on this thing says up to 160 L/min but the specs also show 60 litre per minute, which number am i actually working with for my setup?

Question by: Johnny F on Apr 16, 2025, 7:49 PM

Both numbers are real, just describing different things. The 160 L/min figure is the rated maximum the valve series is capable of handling. The 60 L/min figure reflects the flow rate specific to this particular model configuration. For sizing and system planning, use the 60 L/min number as your working flow rate.

Answer by: Customer Support on Apr 18, 2025, 3:58 PM
