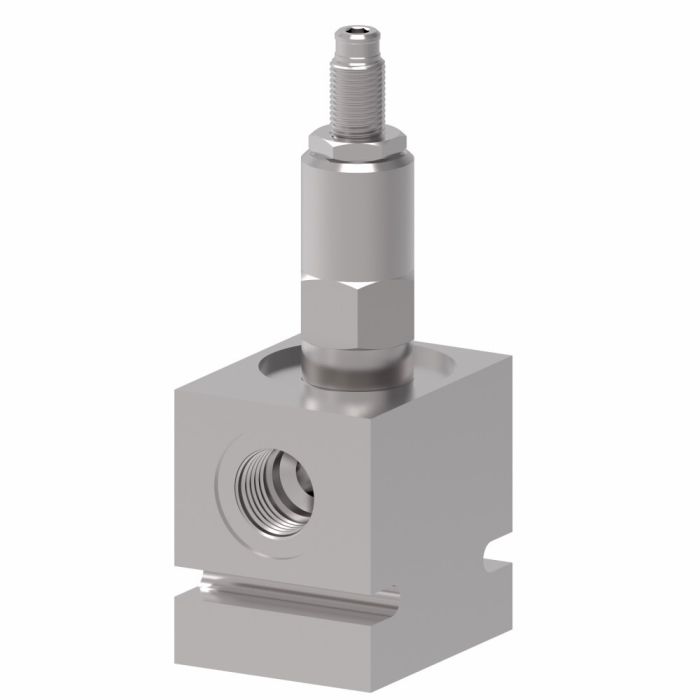

VICKERS RV3 10 S 6T 36/ 02-164332

Specifications

Application Harvesters, refuse haulers, mobile and industrial applications	Brand Danfoss – Hydraulics	Brand Vickers	Pack Size 1.00	UOM EA	Features 350 bar (5000 psi) & 300 L/min (80 USgpm)\|Reliable, economical and compact\|Maximum flexibility and minimum space	Flow Rate1 76 litre per minute	ICC SICV Pressure Control Valves	Language English	Net Pack Quantity Units EA	Port Size 3/8"	Product Width 1.14	Special Features None	Style Poppet	Sub Brand Vickers	Supplier Part Number 02-164332	Product Weight 1.29 lbs

Product Questions & Answers 3

Product Questions & Answers

got a tight spot on a machine. how big around is this valve, and is it one of those compact ones?

Question by: Wes J on Jul 20, 2025, 1:43 PM

For sizing, the product width is listed as 1.14, and it’s part of the RV3-10 series that’s described as compact with an emphasis on minimum space.

Answer by: Customer Support on Jul 22, 2025, 6:08 AM

flow rate on this valve is listed at 76 LPM but the features mention 300 L/min -- which one actually applies to this unit?

Question by: Hubert C on Sep 4, 2025, 9:53 AM

The 76 litres per minute figure is the rated flow for this specific RV3-10 valve. The 300 L/min callout is a series-level maximum that applies across the broader RV3 product family, not to every individual configuration within it. For sizing and system planning purposes, 76 LPM is the number you want to work with for this part.

Answer by: Customer Support on Sep 6, 2025, 6:58 AM

I'm looking for a pressure control valve for a harvester. Would this Vickers RV3-10 work alright?

Question by: Tony W on Jul 25, 2025, 8:44 PM

This RV3-10 series pressure control valve is often used in harvesters, as well as refuse haulers and other mobile or industrial applications.

Answer by: Customer Support on Jul 27, 2025, 10:12 AM
