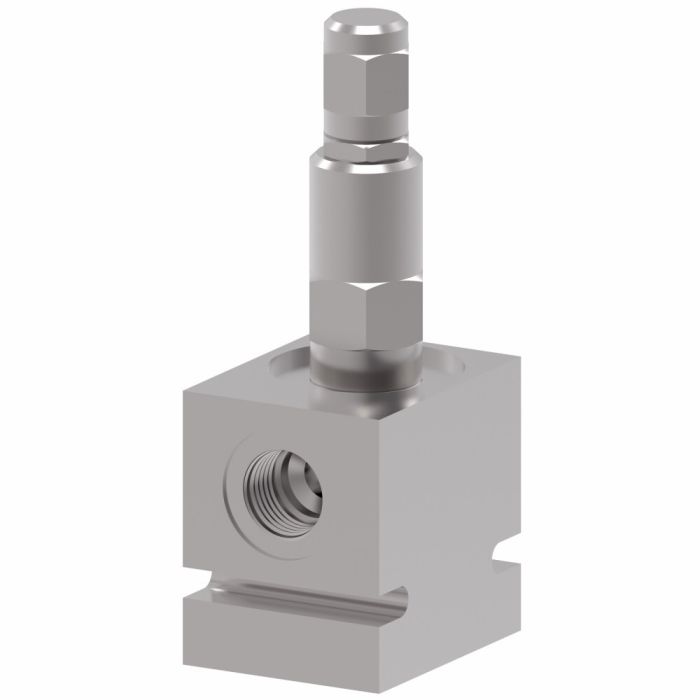

VICKERS RV5 10 C 6T 20/ 02-164252

Specifications

Application Harvesters, refuse haulers, mobile and industrial applications	Brand Danfoss – Hydraulics	Brand Vickers	Pack Size 1.00	UOM EA	Features 350 bar (5000 psi) & 300 L/min (80 USgpm)\|Reliable, economical and compact\|Maximum flexibility and minimum space	Flow Rate1 114 litre per minute	ICC SICV Pressure Control Valves	Language English	Net Pack Quantity Units EA	Port Size 3/8"	Product Width 1.74	Style Spool	Sub Brand Vickers	Supplier Part Number 02-164252	Product Weight 1.31 lbs

Product Questions & Answers 3

Product Questions & Answers

flow rate on this one says 114 LPM but the spec sheet I seen somewhere listed 300 L/min, which number am I actually working with here?

Question by: Ronnie B on Aug 14, 2025, 7:53 PM

The 114 litre per minute figure is the flow rating specific to this valve in its current configuration. The 300 L/min rating applies to the broader RV5-10 series at its upper capability, so different configurations within that same product family can carry different flow ratings. For this particular unit, 114 LPM is the number you want to plan around.

Answer by: Customer Support on Aug 16, 2025, 6:17 AM

Can this handle a harvester application like the description says?

Question by: Earl S on Oct 17, 2025, 9:34 AM

Yes, this Vickers RV5-10 pressure control valve is suitable for use in harvesters, as well as refuse haulers, and various mobile and industrial applications.

Answer by: Customer Support on Oct 18, 2025, 4:36 PM

got a harvester with a tight valve stack. is this RV5-10 one of those compact pressure control valves or is it kinda bulky

Question by: Brett M on Sep 26, 2025, 9:38 PM

Built for maximum flexibility with minimum space, the RV5-10 series is meant to be a compact, economical pressure control valve that still holds up in mobile equipment setups like harvesters and refuse haulers.

Answer by: Customer Support on Sep 28, 2025, 12:32 PM
