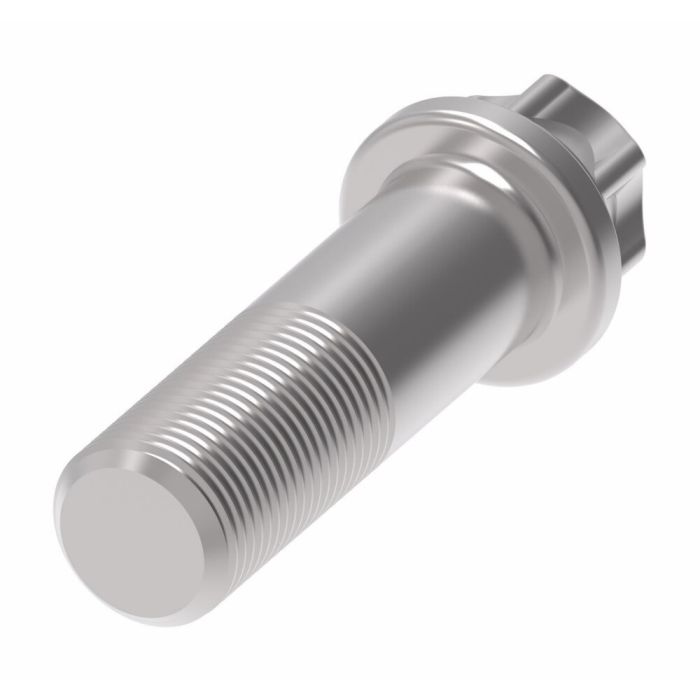

CHAR-LYNN HEAD BOLT

Alternate Part Numbers Alternate Part Number 16292-100, Alternate Part Number C1AA73	Diameter (in) 0.3089 inch	Brand Danfoss Power Solutions II (Char-Lynn)	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features Available in a variety of sizes	ICC Screws	Language English	Materials Alloy steel	Net Pack Quantity Units EA	Product Width 0.46	Special Features Flanged	Sub Brand Char-Lynn	Supplier Part Number 16292-100	Thread Size 0.3125-24	Thread Size 0.3125-24	Product Weight 0.04 lbs

Product Questions & Answers 2

Product Questions & Answers

what thread size does this bolt run? tryna make sure it'll match up before I order

Question by: Jerry W on Jul 7, 2025, 7:21 AM

Runs a 0.3125-24 thread, so a 5/16-24 fine thread pitch. The diameter comes in right at 0.3089 inch, which is standard for that spec. Double-check your existing hardware before ordering and you should be good to go.

Answer by: Customer Support on Jul 8, 2025, 5:49 PM

got a Char-Lynn unit that takes a 16292-100, is this the same head bolt or am i off a number?

Question by: Scott P on Sep 2, 2025, 6:43 AM

Match it up by the supplier part number. This head bolt is Eaton Char-Lynn part 16292-100, and it is a Torx cap screw style spare part.

Answer by: Customer Support on Sep 3, 2025, 9:37 PM
